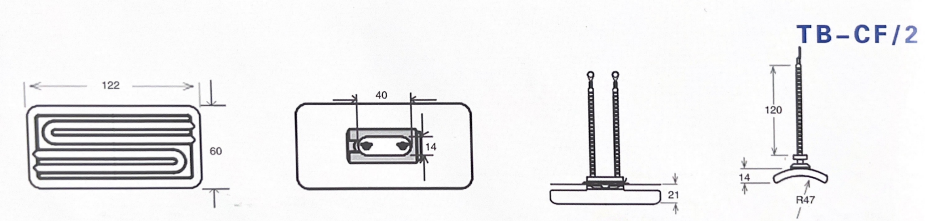

Product size:

120x60x21 mm (size can be customized)

Color:

white/black/yellow (can be customized)

Weight:

135g

Production process:

pouring solidification molding

Power number:

60-250w

Thermocouple type:

K (customizable)

Surface average thermal power (kw/㎡):

16kw/㎡ - 64kw/㎡

Typical operating temperature:

400 ℃ - 720 ℃

Maximum allowable temperature:

750 ℃

Heater wavelength range:

2-10um

Heater standard voltage:

220V/230V (other voltage values are available upon request)

Heating wire material:

Ni-Cr wire/Fe-Cr-Al

According to different operating conditions, the average operating life can reach 20,000 hours.

CE certified

The recommended radiation distance from the heater is 100mm to 200mm

Provide 120mm±10mm ceramic bead wire

Remarks

Standard design

Built-in thermocouple

Non standard customization

Carton packaging

K-type electric couple

Special shape

Operating voltage 220V/230V

Special power

Standard installation circlip

Model representation：T/C/K

Extension conductor
